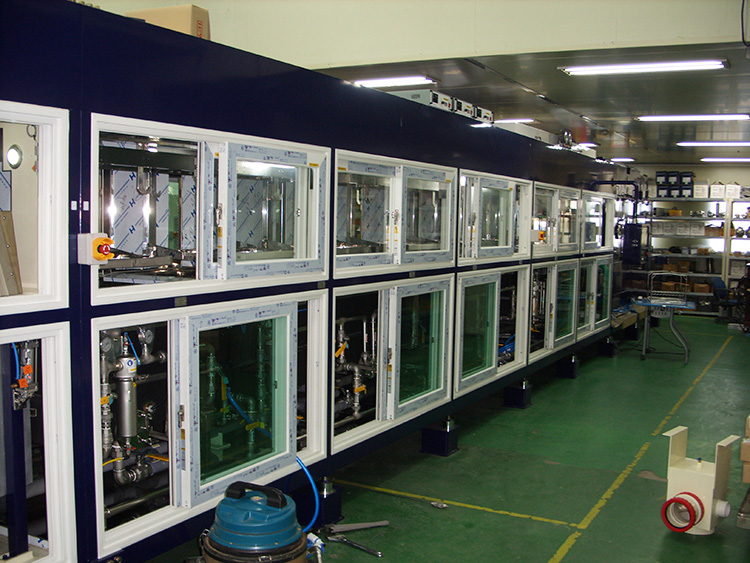

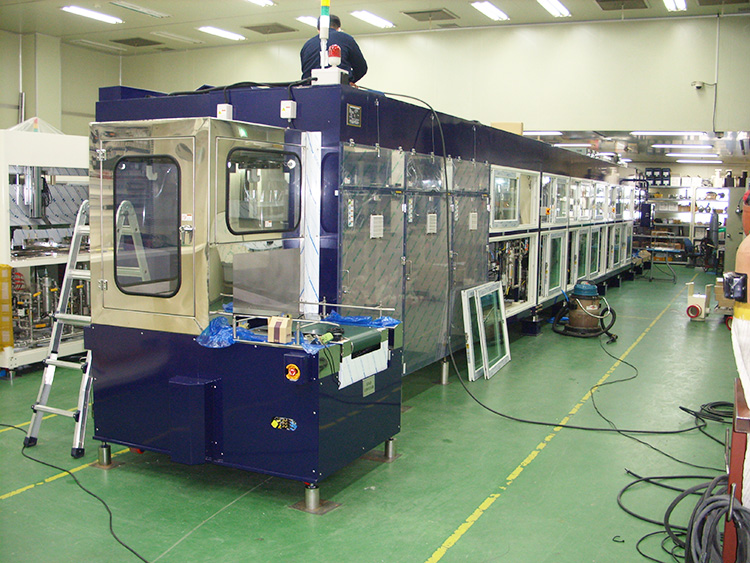

렌즈와 몰드 분리 후 몰드를 세척하기 위한 장비로써 주로 알칼리계의 세정제를 사용하는 세척 장비입니다.



이 장비는 세척과 린스 후 뜨거운 물에 의해 건조방식을 이용하여, 기계 내부에 깨끗한 공기를 공급하여 항상 청결한 기계내부를 유지합니다.



특히 고굴절 렌즈 생산을 위한 보완설계로 높은 수율을 보장합니다.









Specification
  1. Concept : Mold cleaning with ultrasonic
  2. Overall Dimension : 10400 (L) X 2300 (w) X 31500 (h) mm
  3. Mold Quality : 60/120
  4. Basket Capacoty (in dependence of mold size) : 060-093
  5. Typical Cycle Time : 2-3min/Basket (adhustable)
  6. System Control : Fuly automatic, Provided by PLC
  7. Max Heating Temperature : 60℃ ~ 80℃
  8. Electric Power Consumpotion : 220/380V-3phase-50/60Hz
  9. Air Pressure : 5~6kgf/㎠
  10. Detergent : Alkali
