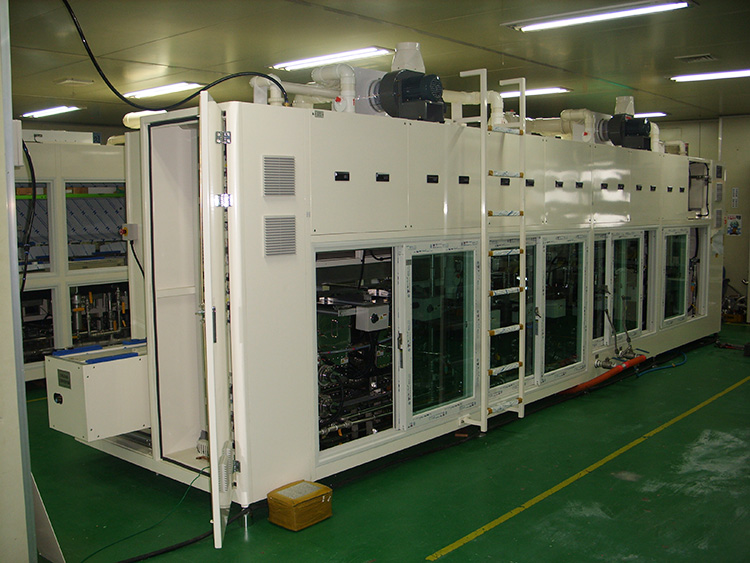

본 장비는 렌즈와 몰드를 분리한 후 렌즈를 세정하는 장비로써, 세척과 건조가 완벽하여 높은 수율을 보장합니다.



특히 고굴절 렌즈 생산에 적합합니다.

















Specification
  1. Concept : Lens cleaning
  2. Overall Dimension : 11995(L) X 3100(w) X 2520(h) mm
  3. Lens Quality : 60 Lenses

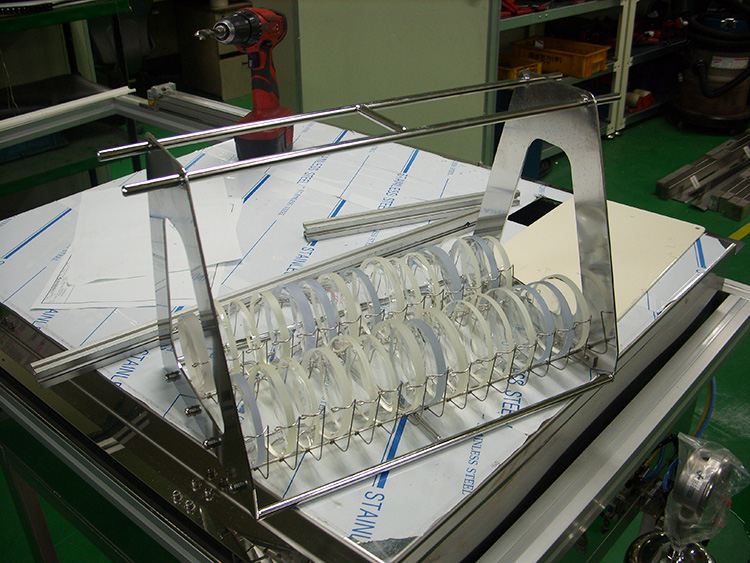

  4. Basket Capacoty (in dependence of mold size) : 60-80Ø
  5. Typical Cycle Time : 2-3min/Basket (adhustable)
  6. System Control : Fuly automatic, Provided by PLC
  7. Max Heating Temperature : 60℃ ~ 80℃
  8. Electric Power Consumpotion : 220/380V-3phase-50/60Hz
  9. Air Pressure : 5~6kgf/㎠
  10. Detergent : Alkali
